FUME HOOD

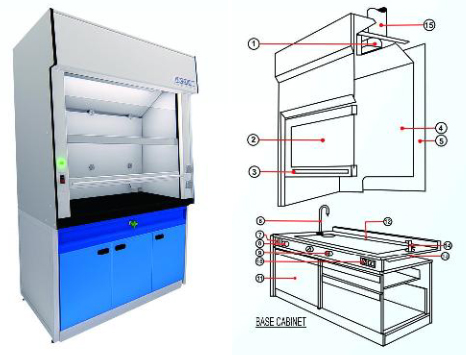

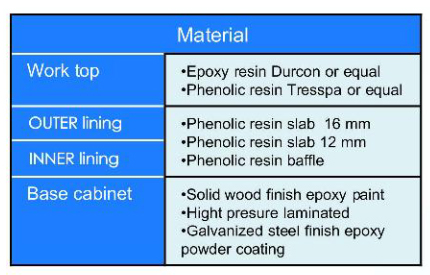

Phenolic Resin FH-P

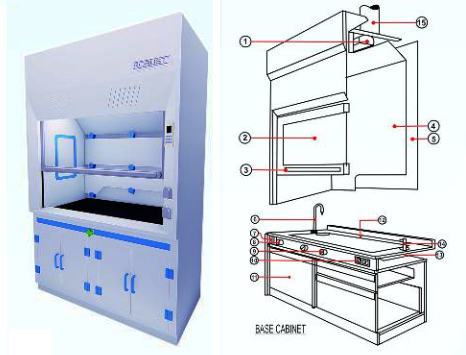

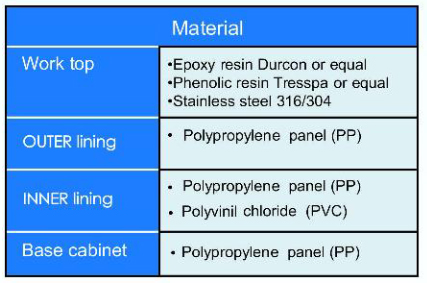

Polypropylene FH-PP

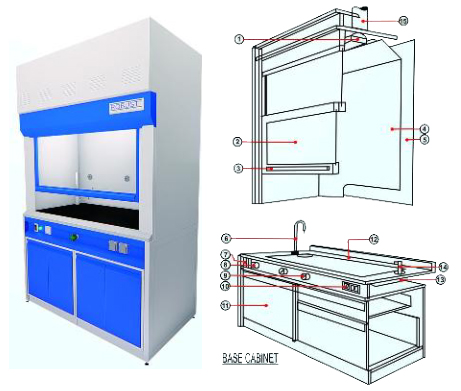

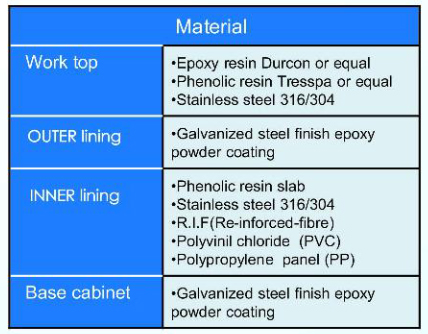

Galvanized Steel STructure FH-S

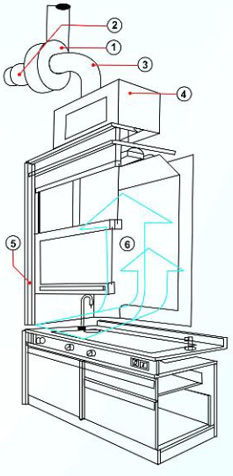

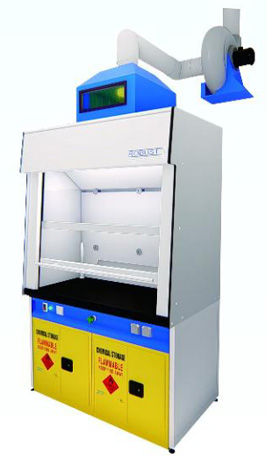

Direct Mounted Scrubber SCR-DM
- 1.
- Centrifugal Fan Blower
Material Impeller & Casing Polypropylene Chemical Resistance - 2.
- Motor Driven
Power 1-2 Hp /380V/ 3phase / 50 Hz
Cap. 824 CFM (1400m3/h) - 1942 CFM (3300m3/ h) - 3.
- Ducting, Flexible Hose PE & PVC Pipe 8" - 10"
- 4.
- Direct mounted fume scrubber WET SCRUBBER, Material Polypropylene
- 5.
- Air flow monitor (Optional)
- 6.
- Face Velocity

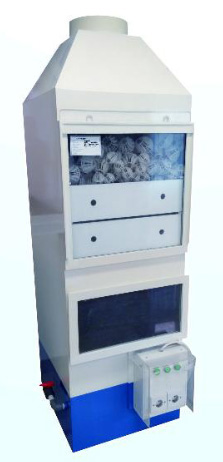

Big Scrubber SCR-BG

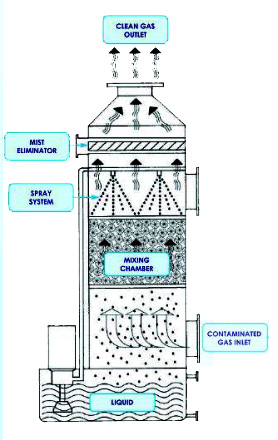

The ROBUST WET SCRUBBER
is a self-contained fume scrubber which was developed for elimination of water soluble gases from fume hoods & other extract devices in situations where site conditions do not allow the scrubber to be mounted directly to fume hood outlet.
Constructed of welded polypropylene the unit houses the combined neutralizing tank below the scrubber section wich contains the float control valve, overflow, closing & sampling ports.
Inspection windows & drain point complete with valves. The unit is complete is all necessary pipe work connecting pump to spray heads & connections for mains water & drain valve to waste services. Day by day maintenance of the unit is provided for by visual inspection windows for the neutralizing tank & mist spray head filter chambers. Access to the neutralizing tank & scrubber mis eliminator pads is provided by the sliding clear polycarbonate windows panels.
A mobile self-contained wet scrubber unit is available. More details available on request.
